06 Haptic Output

Module Introduction​


  1. Jacdac Edge Connector
  2. Jacdac Communication Indicator
  3. Haptic Motor
  4. Product QR Code
  5. Jacdac Standard Through Hole

Components used​

  • 1x MicroUSB Cable
  • 1x MicrobitV2
  • 1x Jacdaptor
  • 1x Cable
  • 1x Haptic Output

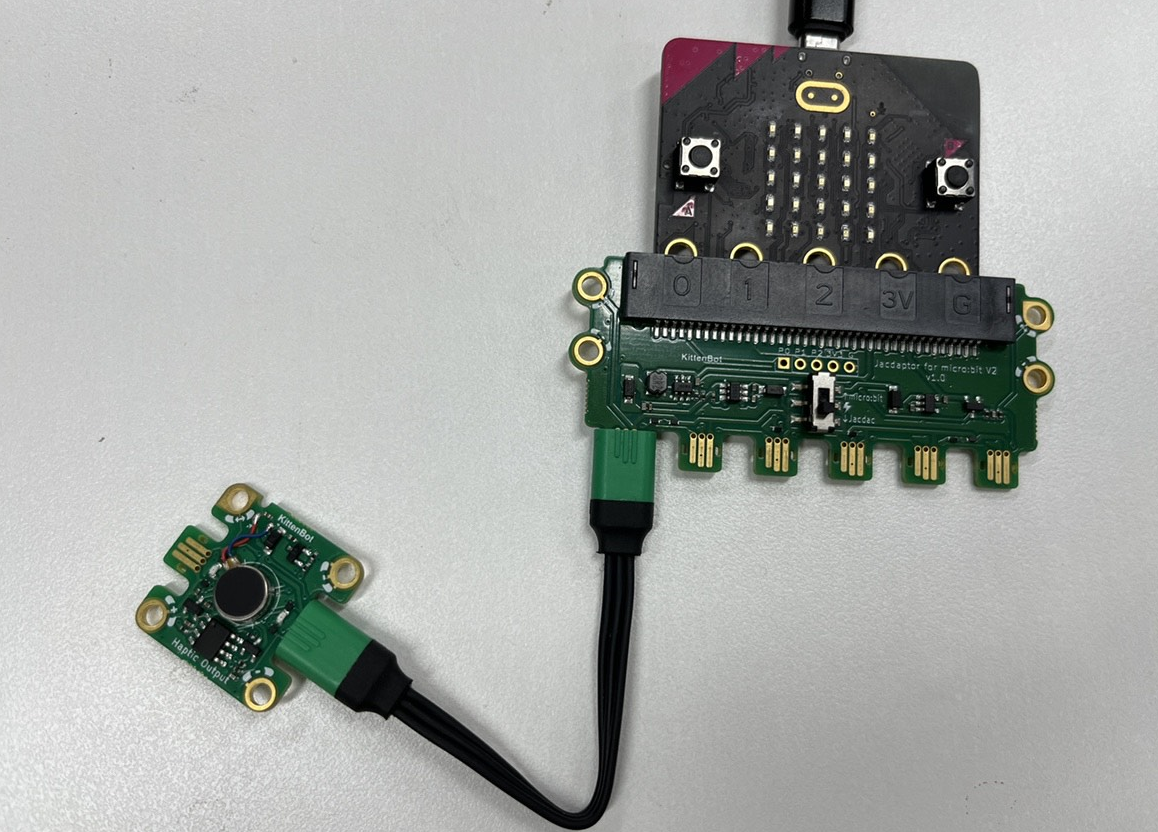

Connection​

PC-〉MicroUSB -〉MicrobitV2-〉Jacdaptor-〉Cable--〉Haptic Output


Coding Platform​

https://makecode.microbit.org/beta

Create a new project​


Establish a connection​


Extensions——Jacdac

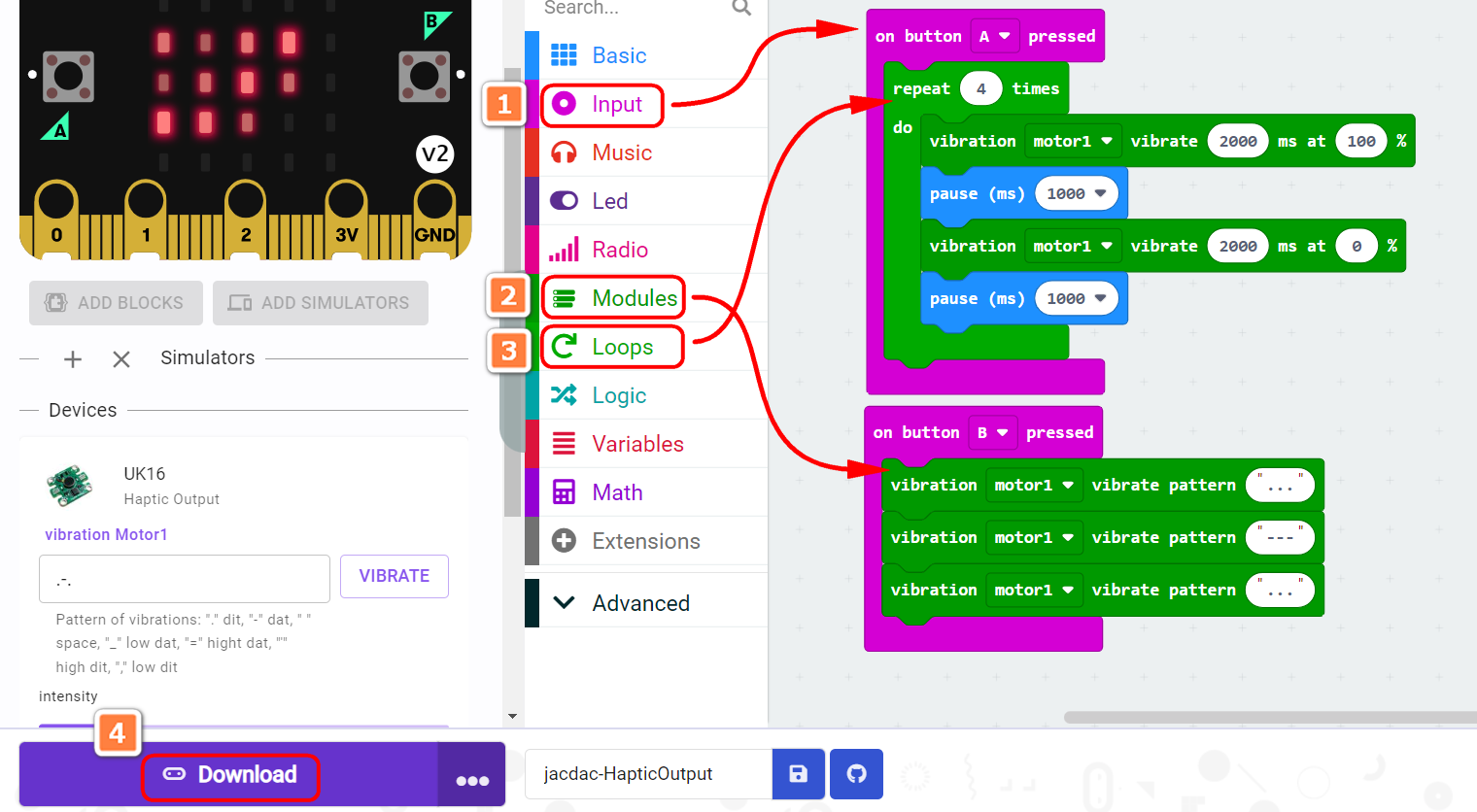

Add Jacdac Haptic Output Block​


Program and download​

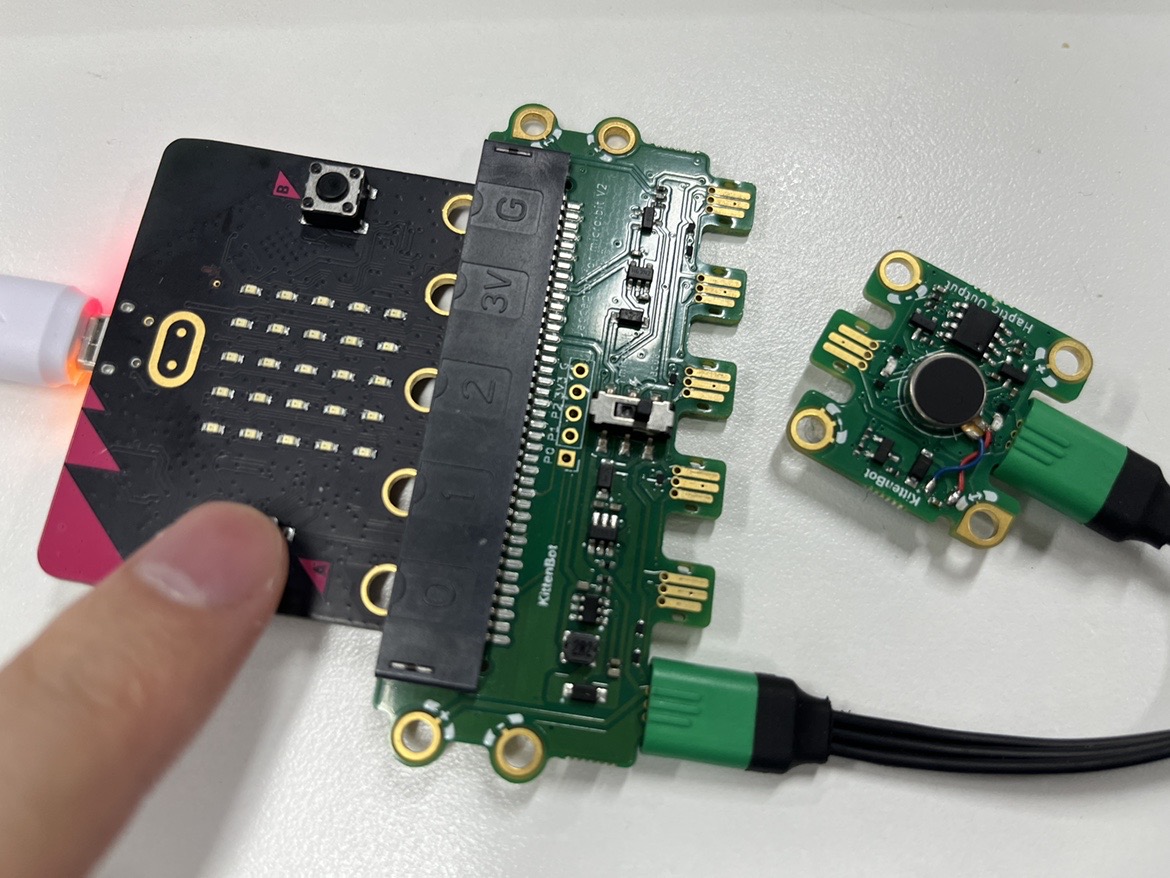

The Result​

Press AB to trigger vibration


FAQ​

Why does the haptic output module not vibrate?​

Please turn the vibration intensity or vibration duration to a larger value

Why is the vibrate pattern setting not responding?​

The vibrate pattern only supports a maximum of 6 characters.
